What an RF Connector Actually Does in Your Signal Path
Think of an RF connector as the handshake between your cable and your equipment, and every handshake is a chance to lose power. When the connection is clean and properly matched, signal passes with almost no loss. When it is not, energy reflects back down the line instead of moving forward. Because this tiny junction sits between major RF products like antennas, radios and combiners, its quality quietly sets the ceiling for your whole link. A weak connector can undo an otherwise well-designed system.
Why Does an RF Connector Lose Signal?
An RF connector loses signal for a handful of well-known reasons, and most are avoidable with the right part and a careful fit.
Impedance Mismatch (the 50-Ohm Rule)
Almost all wireless infrastructure runs at 50 ohms. If your connector is not a true 50-ohm match to your 50ohm RF Coaxial Cable, part of the signal reflects instead of passing through. That reflected energy shows up as higher VSWR and weaker coverage. Dropping a 75-ohm part into a 50-ohm path, even by accident, is a common and costly slip. Our article on why 50ohm RF coaxial cable is the standard explains the reasoning.
Loose, Worn or Over-Mated Connections
Connectors are rated for a set number of mating cycles, and every coupling wears the contact surfaces slightly. Hand-tightening instead of torquing to spec leaves gaps that let signal escape and moisture creep in. Over-tightening is just as harmful, deforming the interface so it never seats cleanly again.
Moisture and Corrosion
Singapore’s humidity is relentless, and the monsoon season punishes any outdoor termination that is not properly sealed. Water ingress corrodes the contact and raises resistance, which bleeds signal and eventually kills the joint. This is why weatherproofing an RF connector matters far more here than in a dry climate.
PIM (Passive Intermodulation)
On shared cellular sites, PIM is the silent killer. When dissimilar metals meet, or a joint is loose or corroded, the connector can generate its own interference that drowns out weak uplink signals. PIM-rated connectors and clean, torqued joints are the defence.
How to Choose the Right RF Connector
Choosing the right RF connector comes down to four matches: impedance, frequency, cable and environment.
Match the Impedance
Stay at 50 ohms end to end for wireless work. One out-of-spec part undermines the whole path.
Match the Frequency
Some interfaces handle sub-1 GHz comfortably; others are built for 5G mid-band and above. Pick one rated beyond your top operating frequency.
Match the Cable Size and Type
The connector must fit the exact gauge of your coaxial cable. A body sized for the wrong diameter never grips properly and leaks signal.
Match the Environment
Outdoor and rooftop terminations need weatherproof, IP-rated bodies; sheltered indoor runs can use standard finishes.
| Connector | Best-Fit Use |
| N-Type | Outdoor, weatherproof antenna runs |
| SMA | Compact devices, higher frequencies |
| TNC | Threaded, vibration-resistant links |
| 7/16 DIN | High-power, low-PIM base station feeders |
RF Connectors in Antenna and Combiner Setups
In a real deployment, the RF connector is everywhere the signal changes hands. It terminates the coax feeding a Panel Antenna, it jumps into an RF Combiner where multiple carriers merge, and it links every jumper in between. A single weak joint on the feed to a Panel Antenna can pull down an entire sector, and a poor termination at the RF Combiner can raise interference across every carrier sharing it. Our panel antenna guide and RF combiner guide are useful companions when you are speccing the surrounding hardware.

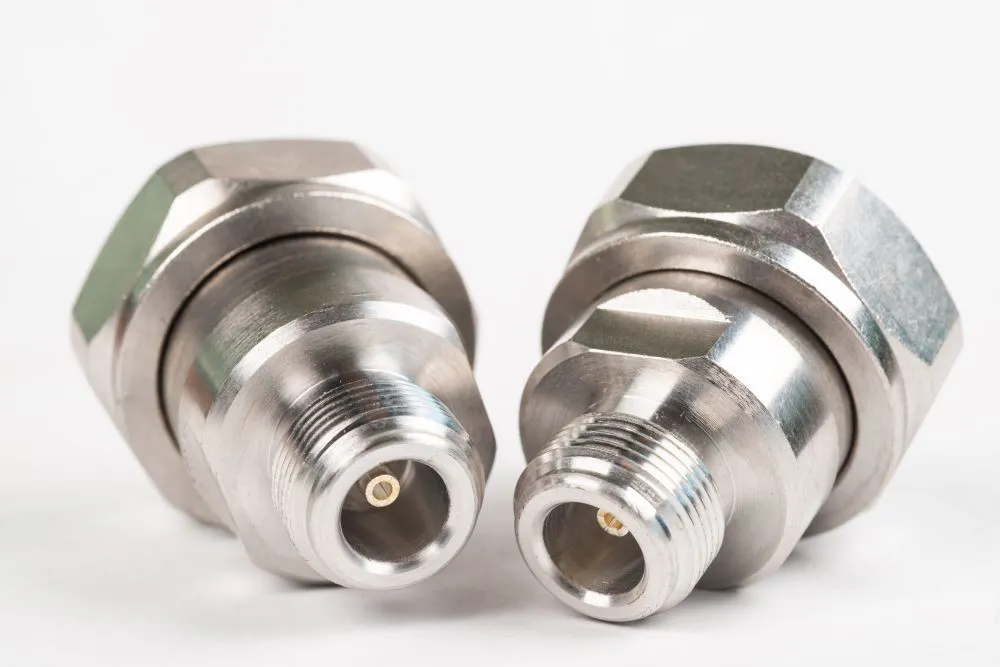

Buying RF Connectors in Singapore: What to Check
Sourcing connectors for a local project brings its own checklist:
- Climate: UV and humidity ratings for exposed rooftop terminations.
- Match your system: confirm impedance and frequency against your existing RF products.
- Genuine parts: grey-market connectors often fail PIM, a real risk on telco work.
- Lead time: confirm stock against your project schedule.
- Termination: pre-terminated assemblies or field-fitted, depending on the job.
What Connector Suits Singapore’s Outdoor Conditions?
For exposed rooftop and tower work, a weatherproof, IP-rated body such as an N-Type is the safe default, sealed properly against monsoon moisture.
Common RF Connector Mistakes
- Wrong impedance (not confirming 50 ohms)
- A mismatched interface for the frequency
- A body undersized for the cable
- Non-weatherproof parts used outdoors
- Low-grade connectors that generate PIM
RF Connector FAQs
Why is my RF connector causing signal loss?
Usually impedance mismatch, a loose or worn joint, or moisture ingress. Check the match and the seal first.
Are all RF connectors 50 ohm?
Most for wireless are, matched to 50ohm RF Coaxial Cable, but some types are 75 ohm. Always confirm before buying.
Which RF connector is best for outdoor use in Singapore?
A weatherproof, IP-rated type, commonly N-Type, sealed against humidity and rain.
Can a bad connector affect my whole antenna system?
Yes. One poor joint can raise VSWR or PIM and drag down an entire sector.
Where can I buy quality RF connectors in Singapore?
Petracarbon supplies RF connectors and related RF products locally.
